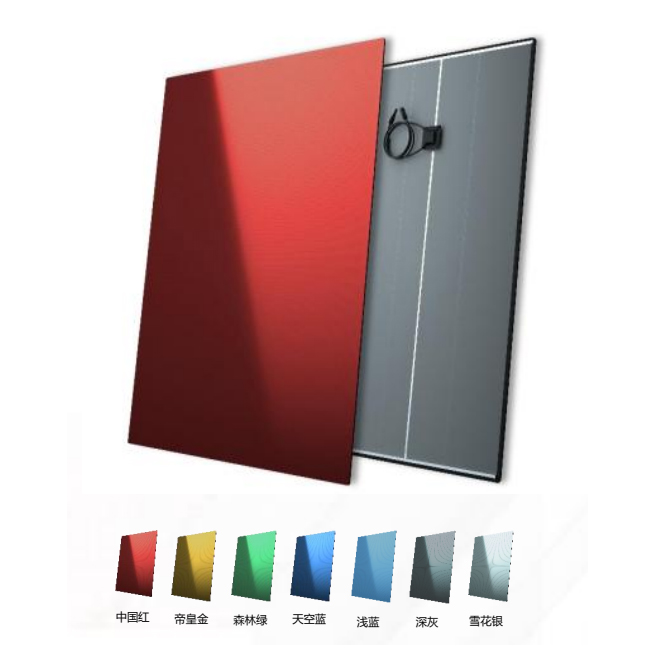

CdTe Photovoltaic Glass - Colored Glaze Series

Electrical Performance Parameters (STC)

Model COM-CBS1-Sky Blue COM-CBS1-Forest Green COM-CBS1-Snow Silver
Maximum Rated Power Pmax (W) 260 240 210
Power Tolerance ±3 ±3 ±3
Maximum Power Point Voltage Vmpp (V) 146.3 146.3 146.3
Maximum Power Point Current Impp (A) 1.78 1.70 1.47
Open Circuit Voltage Voc (V) 182.3 182.3 182.3
Short Circuit Current Isc (A) 2.04 1.95 1.69
STC (Standard Test Conditions): Irradiance 1000W/m², Cell Temperature 25°C, Air Mass AM1.5

Operating Parameters

Parameter Value
Maximum System Voltage 1000V
Reverse Current Withstand Threshold Sky Blue-2.8A / Forest Green-2.7A / Snow Silver-2.3A
Operating Temperature -40°C ~ +85°C
Maximum Static Load 5400Pa
Hail Test Passed
Protection Class IP67
