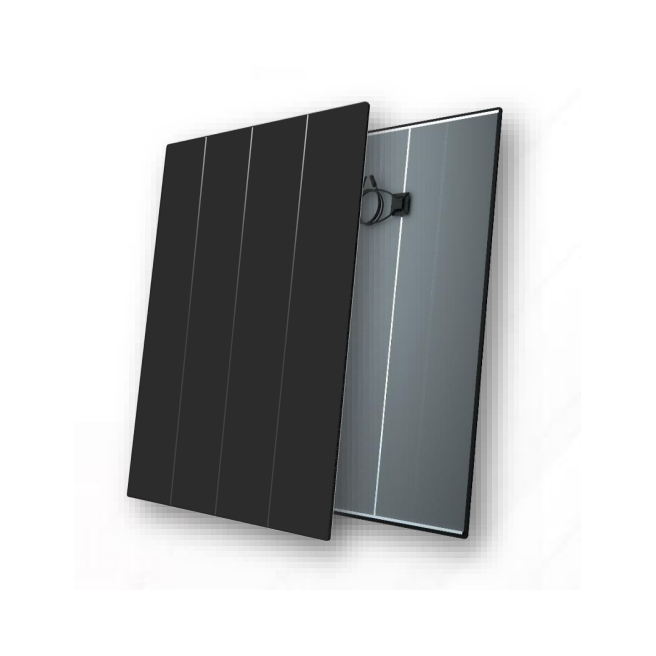

Cadmium Telluride Power Generation Glass - Marble Series

Electrical Performance Parameters (STC)

Model	COM-M1-300W	COM-M1-290W	COM-M1-280W
Maximum Rated Power Pmax (W)	300	290	280
Power Tolerance %	±3	±3	±3
Maximum Power Point Voltage Vmpp (V)	146.3	142.9	141.4
Maximum Power Point Current Impp (A)	2.05	2.03	1.98
Open Circuit Voltage Voc (V)	182.3	180.6	180.1
Short Circuit Current Isc (A)	2.35	2.30	2.23
Fill Factor FF	0.700	0.698	0.697
Module Efficiency (%)	15.62	15.10	14.58

STC (Standard Test Conditions): Irradiance 1000W/m², Cell Temperature 25°C, Air Mass AM1.5

Operating Parameters

Parameter	Value
Maximum System Voltage	1500V
Reverse Current Withstand Threshold	3.3A
Operating Temperature	-40°C ~ +85°C
Maximum Static Load	Front 2400Pa / Back 3600Pa
Hail Test	Passed
Protection Class	IP67
